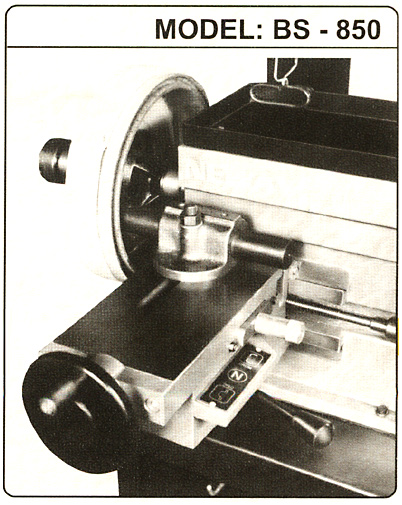

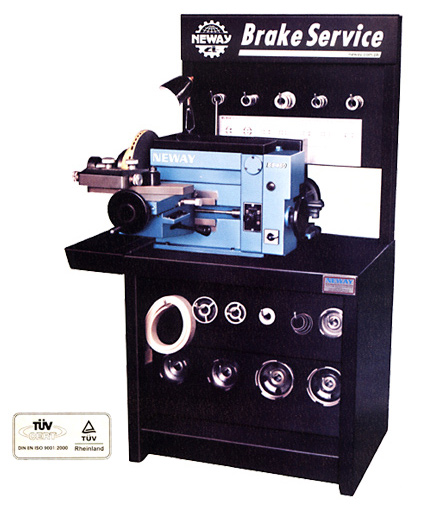

Trucks, buses, tractors and trailers wear brake drums and rotors quickly. The BS-850 puts a fresh, true surface back on — quickly enough for a workshop running daily fleet service, and accurately enough that the brakes bed in correctly first stop.

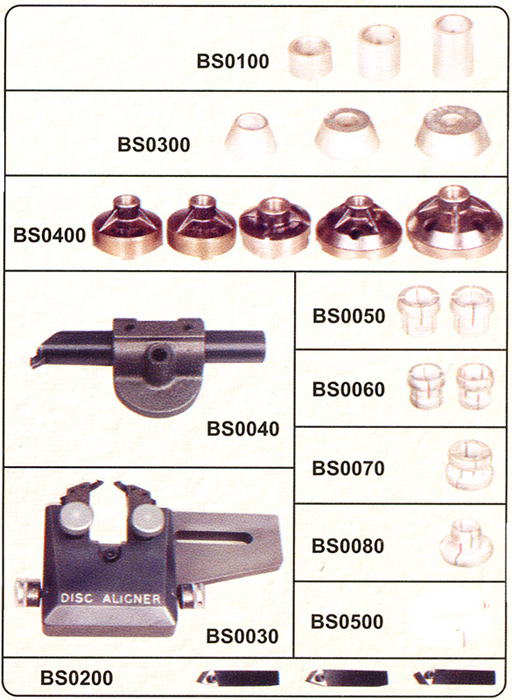

A single mandrel takes both drums and rotors; cutting tools change in under a minute.
| Type | Specification |
|---|---|
| Maximum drum diameter | 850 mm |
| Maximum disc diameter | 700 mm |
| Maximum drum depth | 320 mm |
| Spindle bore | 60 mm (universal mandrel) |
| Spindle speeds | 60 – 220 rpm |
| Feed | Power, 0.05 – 0.25 mm/rev |
| Main motor | 4 kW |
| Machine weight | 1,100 kg |
Note: Please specify colour and voltage of your choice, along with the extra equipment, at the time of placing an order.
