Replacement for the long-running Zara-series. The NCB-20 bores cylinder blocks for cars, LCVs, tractors and compressor bodies with sub-5-micron roundness.

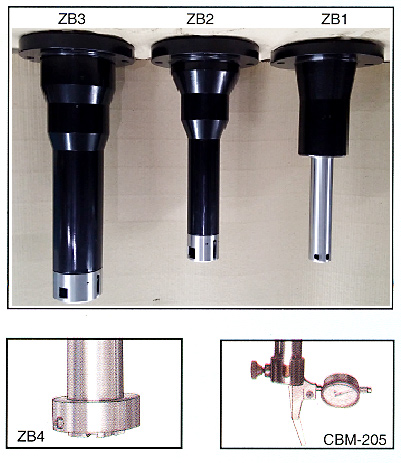

Cast-iron column and base, ribbed for torsional rigidity. Tapered roller-bearing spindle gives virtually zero radial play; the square-section boring bar accepts a quick-change tool holder.
| Type | Specification |
|---|---|
| Bore diameter range | 50 – 250 mm |
| Maximum vertical stroke | 400 mm |
| Worktable size | 800 × 500 mm |
| Table tilt | ± 90° (for V-blocks) |
| Spindle speeds | 90 – 340 rpm |
| Feed per revolution | 0.05 – 0.20 mm |
| Main motor | 3.7 kW |
| Bore roundness accuracy | ± 0.005 mm |
| Machine weight (approx) | 1400 kg |

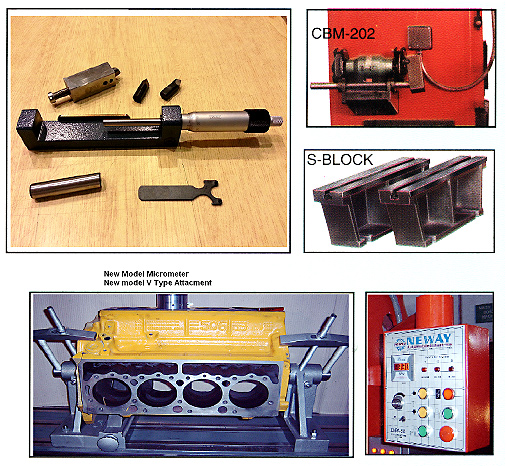

Note: Please specify colour and voltage of your choice, along with the extra equipment, at the time of placing an order.
