The Dany-01 was developed for workshops processing crankshafts in volume — fleet rebuild centres, OEM service operations, and railway depots. Hydraulically operated infeed, automatic dressing and a fully enclosed work zone reduce operator workload to little more than load-and-start.
Two grinding wheel sizes are available depending on journal diameter and shaft length.
| Type | Specification |
|---|---|
| Max. distance between chucks | 760 mm |
| Swing over table | 390 mm |
| Offset of centers (stroke) | 70 mm |
| Max. weight of crankshaft (approx.) | 65 kg |
| Diameter of 3-jaw chucks mounted | 130 mm |
| Workhead rotation speed | 65 – 120 RPM |
| Diameter of grinding wheel | 510 mm |
| Wheel spindle electric motor | 3 hp |
| Workhead electric motor | 1 hp |
| Hydraulic pump electric motor | 1 hp |
| Table rapid traverse electric motor | — |
| Coolant pump electric motor | 0.3 hp |
| Approx. net machine weight | 2,000 kg |
| Approx. length, overall | 2,200 mm |
| Approx. width, overall | 1,270 mm |
| Approx. height, overall | 1,295 mm |
| Standard Equipment |
|---|
| Electric motors and complete control panel |
| Coolant tank and electric pump (complete) |
| Two 3-jaw chucks mounted on machine |

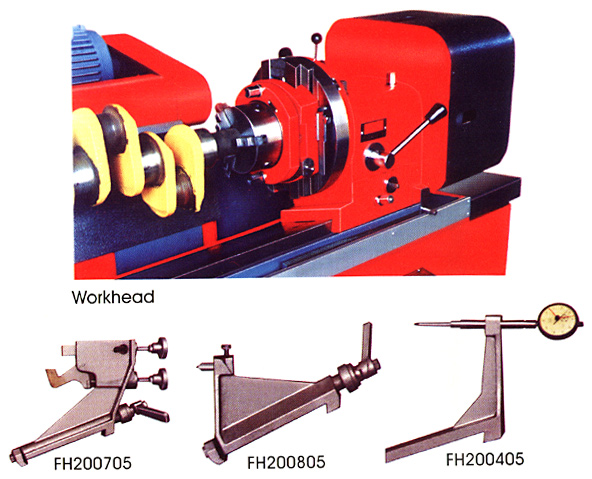

| One straightening gauge with dial indicator |
| One wheel coupling mounted on grinding wheel |

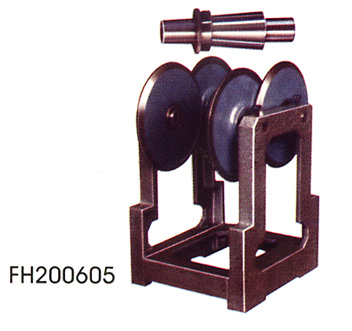

| Wheel balancing stand with arbor |
| Grinding-wheel diamond dresser mounted on steady rest |
| Two steady rests and splash guards |
| Extra Equipment (optional) |
|---|
| Spare wheel coupling (flanges) |
| Wheel radius dresser with diamond nib |
| Automatic continuous sizing gauge |
| Extra grinding wheels (specify thickness) |
| Diamond nib for grinding-wheel dressing — rapid for table |
| Electric feed for table |
| Aluminium ring for chuck |
| Centres-offset checking device |
Note: Please specify colour and voltage of your choice, along with the extra equipment, at the time of placing an order.
